Makita DST220Z Cordless Stapler Spare Parts

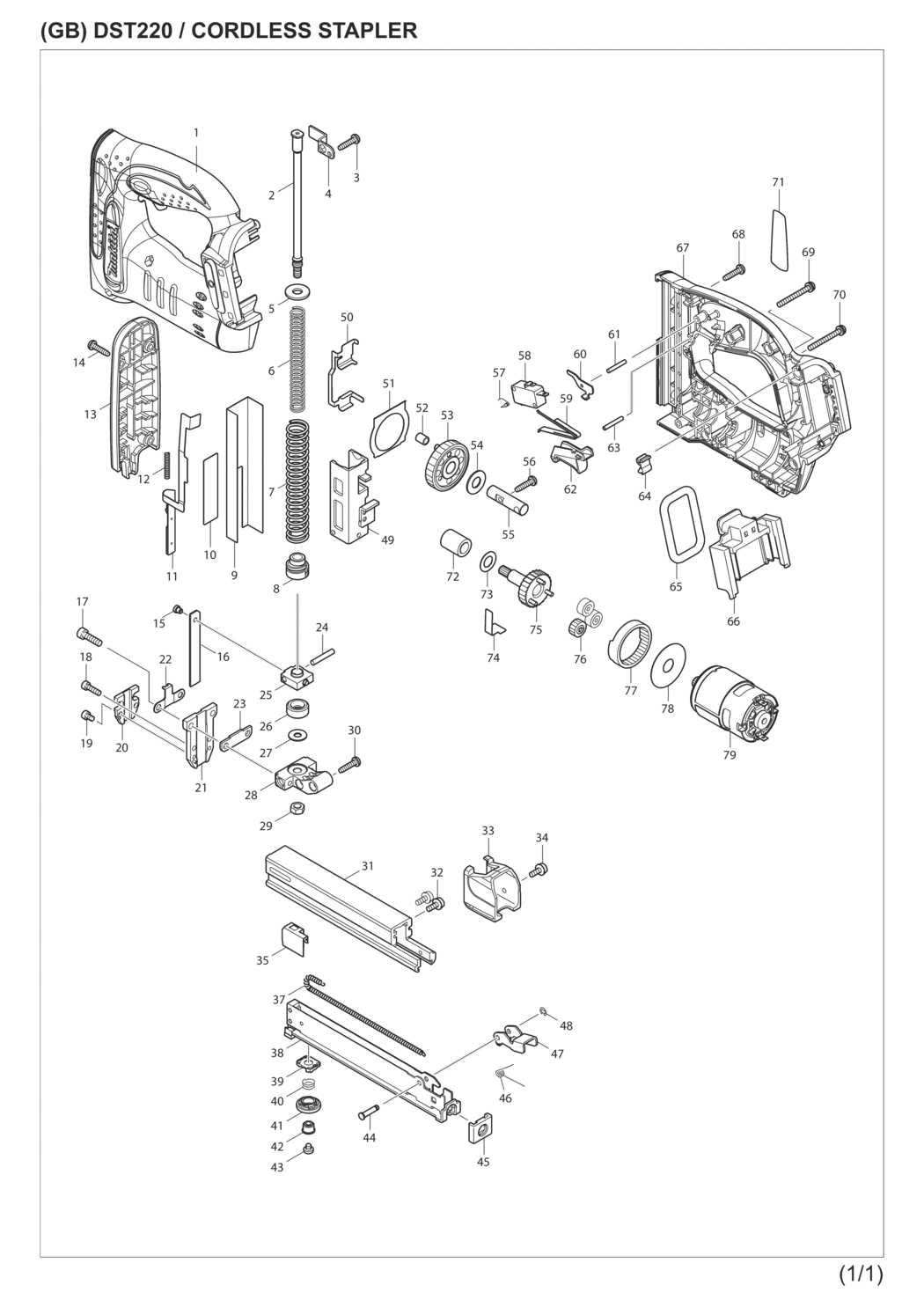

An exploded drawing and spare parts listing for the Makita DST220Z Cordless Stapler

	Ex VAT	Inc VAT
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A111 263005-3	£1.44	£1.73
2 - GUIDE BOLT BST220/1 MSP-325635-9.A0 325635-9	£14.51	£17.41
3 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A312 265995-6	£1.44	£1.73
4 - FIX PLATE BST220/1 MSP-345907-6.A1 345907-6	£2.65	£3.18
5 - HARD WASHER 8 DST111/DST112 MSP-253762-1.A1 253762-1	£1.44	£1.73
6 - COMPRESSION SPRING 9 BST220/1 MSP-234060-2.A1 234060-2	£4.99	£5.99
7 - COMPRESSION SPRING 13 BST220/ MSP-234101-4.A1 234101-4	£7.02	£8.42
8 - SPRING HOLDER BST220/1 MSP-424135-7.A1 424135-7	£4.83	£5.80
9 - GUIDE PLATE BST220/1 MSP-345978-3.A0 345978-3	£4.06	£4.87
10 - UPPER PLATE BST220/1 MSP-345906-8.A1 345906-8	£2.34	£2.81
11-1 - SAFETY LEVER DST220/DST221 MSP-161468-6.A0 161468-6	£18.87	£22.64
12 - COMPRESSION SPRING 4 BST220/1 MSP-234078-3.A2 234078-3	£1.44	£1.73
13 - FRONT COVER BST220/1 MSP-450539-7.A0 450539-7	£4.83	£5.80
14 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A313 265995-6	£1.44	£1.73
15 - PIN 4 BST220/BPT350 MSP-256882-0.A0 256882-0	£2.81	£3.37
16 - DRIVER BST220/1 MSP-345996-1.A2 345996-1	£15.29	£18.35
17 - CAP HD SCREW M5X18 BST220/1 MSP-922227-1.A3 922227-1	£1.44	£1.73
18 - HX SOCKET HEAD BOLT M4X14 AN7 MSP-266201-2.A3 266201-2	£1.44	£1.73
19 - HX SOCKET HEAD BOLT M4X6 BST2 MSP-266199-3.A0 266199-3	£1.44	£1.73
20-1 - SAFETY LEVER GUIDE DST220/221 MSP-456800-0.A2 456800-0	£2.34	£2.81
21 - DRIVER GUIDE BST220/1 MSP-158759-4.A0 158759-4	£27.65	£33.18
22 - SPRING BASE BST220/1 MSP-345910-7.A0 345910-7	£2.50	£3.00
23 - SET PLATE BST220/1 MSP-344670-8.A2 344670-8	£1.44	£1.73
24 - PIN 4 BST220/1/4399DW/HM1810 MSP-256206-0.A4 256206-0	£1.44	£1.73
25 - DRIVER LOCK BST220/1 MSP-313150-5.A2 313150-5	£17.13	£20.56
26 - CUSHION BST220/1 DST111/DST112 MSP-424099-5.A2 424099-5	£1.44	£1.73
27 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A86 253804-1	£1.44	£1.73
28 - HOLDER BST220/1 MSP-318267-9.A2 318267-9	£10.92	£13.10
29 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A43 931302-2	£1.44	£1.73
30 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A311 265995-6	£1.44	£1.73
31 - MAIN MAGAZINE BST220/1 MSP-331842-4.A2 331842-4	£82.91	£99.49
32 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A74 911113-1	£1.44	£1.73
33 - END CAP BST220/1 MSP-450540-2.A2 450540-2	£3.74	£4.49
34 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A73 911113-1	£1.44	£1.73
35 - PUSHER BST220/1 MSP-345997-9.A0 345997-9	£9.98	£11.98
37 - TENSION SPRING 3 BST220/1 MSP-231854-6.A2 231854-6	£7.80	£9.36
38 - SUB MAGAZINE BST220/1 MSP-165532-5.A2 165532-5	£91.48	£109.77
39 - ADJUSTER BASE BST220/1 MSP-450775-5.A2 450775-5	£1.44	£1.73
40 - COMPRESSION SPRING 9 BST220/1 MSP-231323-7.A0 231323-7	£1.44	£1.73
41 - ADJUSTER BST220/1 MSP-450702-2.A2 450702-2	£1.44	£1.73
42 - LOCK SLEEVE BST220/1 MSP-450774-7.A0 450774-7	£1.44	£1.73
43 - SPARE PART MSP-265127-5.A1 265127-5	£1.44	£1.73
44 - PIN 4 BST220/221/DST111/DST112 MSP-268029-4.A2 268029-4	£1.44	£1.73
45 - MAGAZINE END BST220/1 MSP-421637-4.A3 421637-4	£2.65	£3.18
46 - TORSION SPRING 5 BST220/1 MSP-233528-5.A2 233528-5	£1.44	£1.73
47 - LEVER BST220/1 MSP-345861-4.A1 345861-4	£7.64	£9.17
48 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A48 961017-7	£1.44	£1.73
49 - HAMMER BST220/1 MSP-165506-6.A0 165506-6	£23.62	£28.34
50 - SLIDE PLATE BST220/1 MSP-345914-9.A2 345914-9	£5.62	£6.74
51 - PLATE T221DW/BST220/1 MSP-343629-2.A2 343629-2	£2.18	£2.62
52 - SLEEVE 5 BST220/1 MSP-257772-0.A2 257772-0	£4.99	£5.99
53 - SPUR GEAR 55 BST220/1 MSP-158646-7.A0 158646-7	£18.72	£22.46
54 - THIN WASHER 10 BST220/HR3000C MSP-253171-4.A0 253171-4	£1.44	£1.73
55 - PIN 10 BST220/1 MSP-324947-7.A0 324947-7	£8.27	£9.92
56 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A310 265995-6	£1.44	£1.73
57 - TORSION SPRING 3 BST220/1 MSP-233531-6.A0 233531-6	£1.44	£1.73
58 - SWITCH V-15-3A6 DUM166/168/DU MSP-651891-8.A15 651891-8	£3.59	£4.31
59 - LEAF SPRING BST220/1 MSP-232240-4.A2 232240-4	£6.40	£7.68
60 - RELEASE PLATE BST220/1 MSP-345908-4.A2 345908-4	£3.28	£3.93
61 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A25 256221-4	£1.58	£1.89
62 - TRIGGER BST220/1 MSP-450536-3.A2 450536-3	£2.50	£3.00
63 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A24 256221-4	£1.58	£1.89
65 - CUSHION BST221/BHR240/BST220 MSP-424030-1.A2 424030-1	£1.44	£1.73
66 - TERMINAL/YELLOW DST220 MSP-644811-9 644811-9	£18.14	£21.77
67 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A102 263005-3	£1.44	£1.73
68 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A315 265995-6	£1.44	£1.73
69 - PAN HD SCREW M4X35 W/CP WASHE MSP-911163-6.A5 911163-6	£1.44	£1.73
70 - PAN HD SCREW M4X35 W/CP WASHE MSP-911163-6.A6 911163-6	£1.44	£1.73
72 - PLANE BEARING 10 BST220/221/T MSP-214058-5.A0 214058-5	£1.44	£1.73
73 - THIN HARD WASHER 10 BST220/KP MSP-253758-2.A17 253758-2	£1.44	£1.73
74 - LEAF SPRING BST220/1 MSP-232241-2.A0 232241-2	£3.59	£4.31
75 - SPUR GEAR 7 BST220/1 MSP-158647-5.A2 158647-5	£7.64	£9.17
76 - SPUR GEAR DST111/DST112/BPT35 MSP-221961-3.A3 221961-3	£3.74	£4.49
77 - INTERNAL GEAR 69 BST220/221 MSP-221999-8.A0 221999-8	£17.86	£21.43
78 - FLAT WASHER 12 DST111/DST112 MSP-267053-4.A1 267053-4	£1.44	£1.73
A01 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A19 195246-2	£2.55	£3.06
A02 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A152 251314-2	£1.44	£1.73
A03 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A80 346317-0	£1.93	£2.32
