Makita 4112HS Angle Cutter Spare Parts

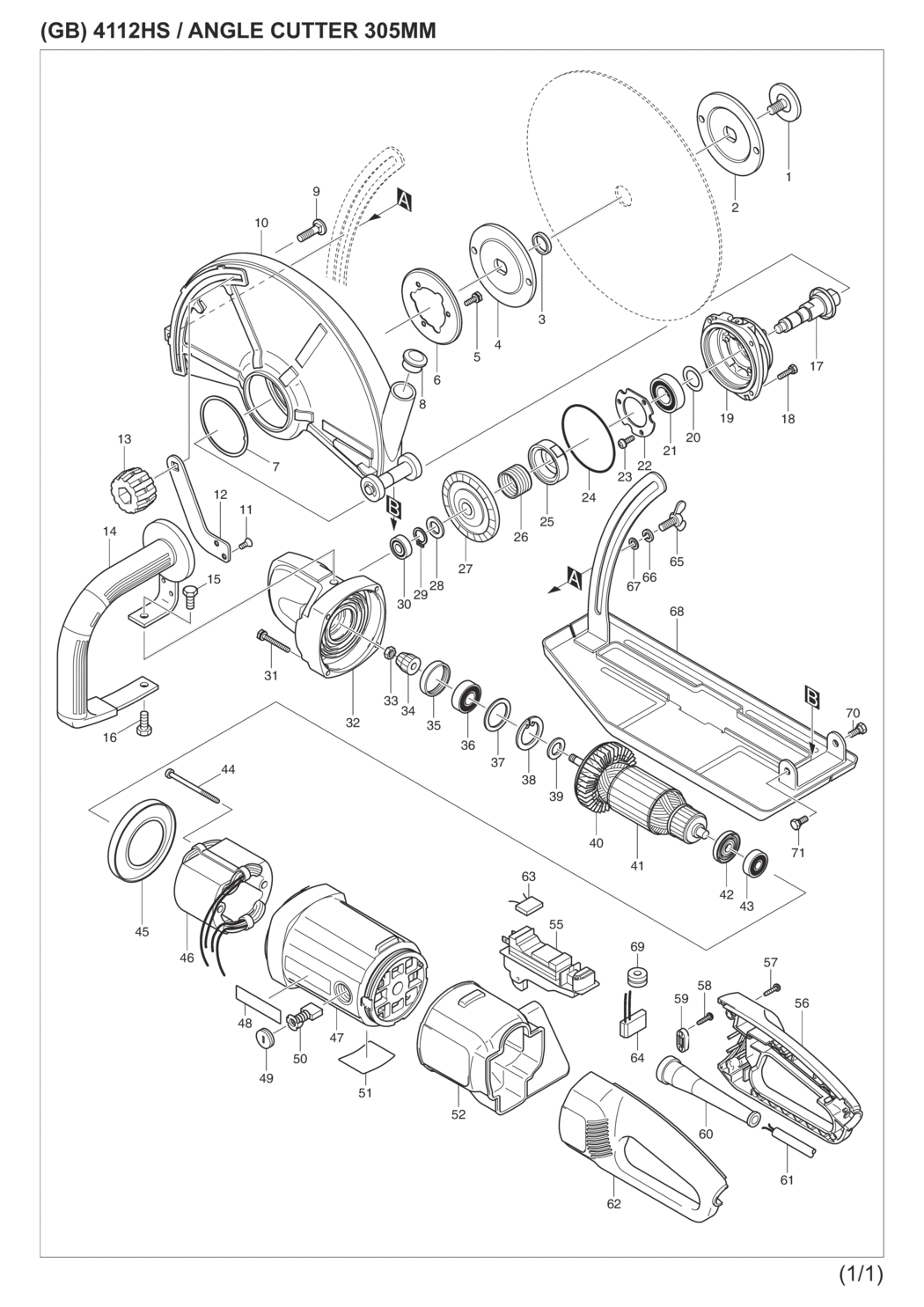

An exploded drawing and spare parts listing for the Makita 4112HS Angle Cutter

	Ex VAT	Inc VAT
1 - HEX BOLT M10X25 4110C/4112HS MSP-265265-3.A1 265265-3	£4.68	£5.62
2 - INNER FLANGE 100 4110C/4112HS MSP-224184-2.A2 224184-2	£12.17	£14.60
3 - RING 20 2412N/2414/4110C/411 MSP-257054-0.A4 257054-0	£2.50	£3.00
4 - INNER FLANGE 100 4110C/4112HS MSP-224184-2.A3 224184-2	£12.17	£14.60
5 - +HEX BOLT M5X16 4112HS MSP-925221-2 925221-2	£1.44	£1.73
5-1 - HEX HD SCREW M5X14 SPRING 270 MSP-925216-5.A0 925216-5	£1.44	£1.73
6 - PRESSURE PLATE 4112HS MSP-345269-2.A1 345269-2	£3.59	£4.31
7 - PLATE B 4110C/4112HS MSP-341853-1.A0 341853-1	£1.44	£1.73
8 - CAP 31 SD100D/DSD180Z MSP-286268-4.A0 286268-4	£1.44	£1.73
8-1 - CAP 32 4112HS MSP-286289-6.A0 286289-6	£5.92	£7.11
9 - CAP SQ NECK BOLT M8X30 SR2600 MSP-265845-5.A1 265845-5	£1.44	£1.73
10 - RING 12 4110C MSP-257091-4.A0 257091-4	£2.50	£3.00
10 - EXT E-RING JIS JE9 1902/1219&L MSP-961015-1.A8 961015-1	£1.44	£1.73
10 - LABEL/CAUTION 4112HS MSP-817574-2.A0 817574-2	£2.18	£2.62
10 - WHEEL COVER ASSY 4112HS MSP-125185-2 125185-2	£98.53	£118.24
11 - COUNTERSUNK SCREW M5X8 HS0600 MSP-912202-5.A2 912202-5	£1.44	£1.73
12 - LOCK PLATE 4112HS MSP-345291-9.A1 345291-9	£2.65	£3.18
13 - THUMB NUT M8 4112HS MSP-252648-6.A0 252648-6	£6.40	£7.68
14 - GRIP 4112HS MSP-273655-6.A0 273655-6	£32.69	£39.23
15 - HEX HD SCREW M8X20 JR3020 MSP-921432-7.A1 921432-7	£1.44	£1.73
16 - HEX HD SCREW M8X20 JR3020 MSP-921432-7.A4 921432-7	£1.44	£1.73
17 - SPINDLE 4112HS MSP-153541-6.A1 153541-6	£23.62	£28.34
18 - + HEX BOLT M5X20 4112HS MSP-265502-5.A0 265502-5	£1.44	£1.73
19 - BEARING BOX 4112HS MSP-153539-3.A0 153539-3	£43.60	£52.32
20 - SHIM WASHER 20 VC3211M/9079F MSP-267041-1.A0 267041-1	£1.44	£1.73
21-1 - BALL BEARING 2012DDW/3612 MSP-211326-7.A2 211326-7	£12.32	£14.79
21 - BALL BEARING 2012DDW/3612 MSP-211326-7.A9 211326-7	£12.32	£14.79
22 - BEARING RETAINER 50 4112HS MSP-285708-9.A0 285708-9	£2.50	£3.00
23 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A10 911221-8	£1.44	£1.73
24 - O RING 80 9079SF/4112HS MSP-213757-6.A3 213757-6	£1.44	£1.73
25 - LOCK SLEEVE 4112HS MSP-331644-8.A1 331644-8	£19.58	£23.50
26 - LOCK SPRING 24 4112HS MSP-233922-1.A1 233922-1	£12.79	£15.35
27 - SPIRAL BEVEL GEAR 48 4112HS MSP-227438-6 227438-6	£53.07	£63.68
28 - FLAT WASHER 15 4112HS MSP-267251-0.A0 267251-0	£5.62	£6.74
29 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A23 961055-9	£1.44	£1.73
30 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A34 211061-7	£8.73	£10.48
31 - +HEX BOLT M5X40 4112HS MSP-925261-0.A1 925261-0	£1.44	£1.73
32 - GEAR HOUSING 4112HS MSP-153542-4.A0 153542-4	£46.33	£55.60
33 - HEX NUT M8-12 4112HS/HR5211C MSP-252178-7.A3 252178-7	£1.44	£1.73
34 - SPIRAL BEVEL GEAR 9 4112HS MSP-227440-9 227440-9	£20.30	£24.36
35 - RUBBRER RING 36 4112HS MSP-262554-7.A0 262554-7	£1.44	£1.73
36 - BALL BEARING 6202DDW BO3710/1 MSP-211228-7.A10 211228-7	£10.14	£12.17
37 - FLAT WASHER 30 4112HS MSP-267250-2.A1 267250-2	£1.44	£1.73
38 - RETAINING RING R-40 HM0870/71 MSP-962157-4.A0 962157-4	£1.44	£1.73
39 - FLAT WASHER 15 4112HS MSP-267251-0.A1 267251-0	£5.62	£6.74
40 - FAN 80 4112HS MSP-240060-2.A1 240060-2	£4.06	£4.87
41 - ARMATURE 110V 4112HS MSP-518711-8 518711-8	£87.07	£104.48
41 - ARMATURE ASSY 240V 4112HS MSP-516888-3 516888-3	£87.07	£104.48
42 - INSULATION WASHER 9029/SMA910 MSP-681630-2.A6 681630-2	£1.44	£1.73
43 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A20 211087-9	£9.67	£11.61
44 - PT SCREW 5X75 2414B MSP-266059-9.A10 266059-9	£1.44	£1.73
45 - BAFFLE PLATE 9047/9049/9079SF MSP-416131-9.A1 416131-9	£1.44	£1.73
46 - FIELD 240V 4112HS MSP-626134-7 626134-7	£43.30	£51.96
46 - FIELD 110V 4112HS MSP-628936-7 628936-7	£43.30	£51.96
47 - BRUSH HOLDER GA7050/ 9047/904 MSP-643707-1.A3 643707-1	£5.46	£6.55
47 - MOTOR HOUSING 4112HS MSP-183564-0.A1 183564-0	£32.69	£39.23
48 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A18 819064-1	£1.44	£1.73
49 - BRUSH HOLDER CAP 9029 ANTISLI MSP-643710-2.A1 643710-2	£1.44	£1.73
50 - CARBON BRUSH CB-204/M9001 MSP-191957-7.A5 191957-7	£14.82	£17.78
51 - NAME PLATE 4112HS MSP-850449-2 850449-2	£1.44	£1.73
52 - DUST COVER 4112HS MSP-421831-8.A0 421831-8	£6.55	£7.86
55-2 - SWITCH 1362.0113 GA9020S/2 MSP-651179-6.A5 651179-6	£29.38	£35.25
55-1 - SWITCH 1362.0113 GA9020S/2 MSP-651179-6.A10 651179-6	£29.38	£35.25
56 - SPONGE SHEET 4112HS MSP-421833-4.A2 421833-4	£1.44	£1.73
56 - HANDLE SET 4112HS MSP-183615-9.A2 183615-9	£23.62	£28.34
57 - PT SCREW 4X20 TRILOBULAR 6833 MSP-266045-0.A23 266045-0	£1.44	£1.73
58 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1011 265995-6	£1.44	£1.73
59 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A49 687053-2	£1.44	£1.73
59 - STRAIN RELIEF 3612C/5103R/411 MSP-687054-0.A0 687054-0	£1.44	£1.73
60 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A3 682560-0	£2.34	£2.81
60 - CORD GUARD 11.5 HM1202C 9069S MSP-682561-8.A2 682561-8	£1.44	£1.73
61 - POWER SUPPLY CORD 240V GA7060 MSP-692607-2.A12 692607-2	£20.16	£24.19
61 - POWER SUPPLY CORD 110V 5903R MSP-665550-8.A20 665550-8	£29.38	£35.25
62 - HANDLE SET 4112HS MSP-183615-9.A3 183615-9	£23.62	£28.34
62 - SPONGE SHEET 4112HS MSP-421833-4.A3 421833-4	£1.44	£1.73
63 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A66 645141-1	£3.21	£3.85
64 - SOFT START CIRCUIT 4112HS/1 MSP-631552-6.A0 631552-6	£30.96	£37.15
64 - SOFT START CIRCUIT 4112HS/2 MSP-631553-4.A1 631553-4	£34.28	£41.13
65 - THUMB SCREW M8X20 MSP-924426-1.A0 924426-1	£3.59	£4.31
66 - M8 SPRING RING DIN 128 LF1000 MSP-942201-3.A1 942201-3	£1.44	£1.73
67 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A40 941201-0	£1.44	£1.73
68 - BASE 4112HS MSP-165343-8 165343-8	£14.94	£17.93
69-1 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A58 688131-1	£1.44	£1.73
70 - SHOULDER HEX BOLT M6 4112HS MSP-265506-7.A0 265506-7	£2.81	£3.37
71 - SHOULDER HEX BOLT M6 4112HS MSP-265506-7.A1 265506-7	£2.81	£3.37
A01 - SOCKET WRENCH 17 14/12N/4110C MSP-782210-8.A21 782210-8	£4.07	£4.88
A02 - MAKITA LOGO LEBEL 4112HS MSP-819145-1.A3 819145-1	£1.44	£1.73
A02 - LATCH/PLASTIC CASE 150676-4) MSP-416401-6.A10 416401-6	£1.20	£1.44
A02-1 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A26 163467-4	£1.47	£1.76
A02-1 - MAKITA LOGO LEBEL 4112HS MSP-819145-1.A17 819145-1	£1.44	£1.73
