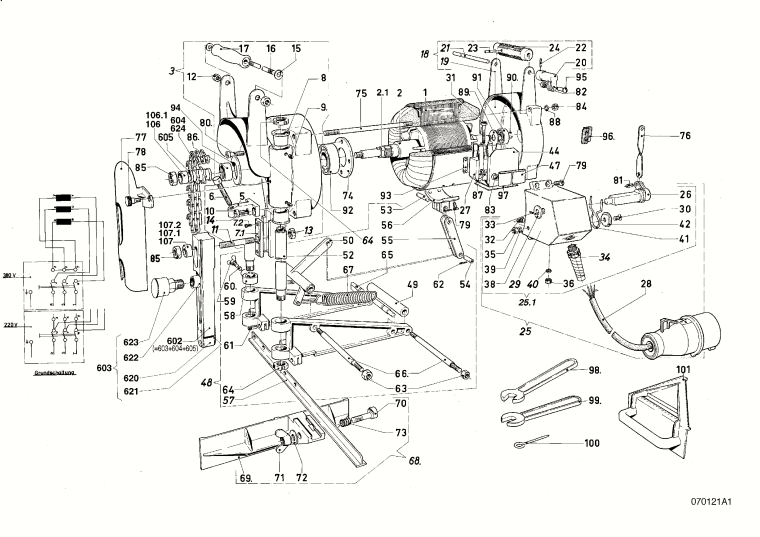

1 - STATOR
MAF-008258.A1
008258
|
-
|
|
|
|
2 - ROTOR PACKAGED
MAF-007213.A1
007213
|
-
|
|
|
|
2.1 - ADJUSTING SPRING
MAF-007806.A2
007806
|
-
|
|
|
|
3 - BEARING COVER, FRONT, ASSEMBLED
MAF-022658.A0
022658
|
-
|
|
|
|
5 - CHAIN TENSIONING DEVICE
MAF-003511.A1
003511
|
-
|
|
|
|
6 - TENSIONING SCREW
MAF-005708.A2
005708
|
-
|
|
|
|
7.1 - INDEX PIN
MAF-038404.A1
038404
|
-
|
|
|
|
7.2 - CYLINDER-HEAD SCREW
MAF-005536.A2
005536
|
-
|
|
|
|
8 - GUIDE BUSH
MAF-035862.A2
035862
|
-
|
|
|
|
9 - THREADED PIN
MAF-005231.A0
005231
|
-
|
|
|
|
10 - CYLINDER-HEAD SCREW
MAF-005539.A0
005539
|
-
|
|
|
|
11 - SET SCREW
MAF-005707.A0
005707
|
-
|
|
|
|
12 - HEXAGONAL NUT
MAF-005920.A3
005920
|
-
|
|
|
|
13 - HEXAGONAL NUT
MAF-005926.A5
005926
|
-
|
|
|
|
14 - LOCKING WASHER
MAF-006114.A19
006114
|
-
|
|
|
|
15 - WASHER
MAF-006146.A0
006146
|
-
|
|
|
|
16 - HANDLE ARBOR
MAF-006510.A2
006510
|
-
|
|
|
|
17 - HANDLE
MAF-006524.A1
006524
|
-
|
|
|
|
18 - BEARING COVER, REAR, ASSEMBLED
MAF-035854.A0
035854
|
-
|
|
|
|
19 - BEARING COVER, REAR
MAF-036259.A0
036259
|
-
|
|
|
|
20 - SWITCH LEVER
MAF-004716.A0
004716
|
-
|
|
|
|
21 - HANDLE ARBOR
MAF-004717.A0
004717
|
-
|
|
|
|
22 - SPRING DOWEL SLEEVE
MAF-005833.A3
005833
|
-
|
|
|
|
23 - SPRING DOWEL SLEEVE
MAF-005831.A4
005831
|
-
|
|
|
|
24 - RUBBER HANDLE
MAF-006514.A1
006514
|
-
|
|
|
|
25 - SWITCH, CPL., WITH PLUG
MAF-094166.A2
094166
|
-
|
|
|
|
25.1 - SWITCH CPL., WITHOUT MAINS CABLE
MAF-094265.A2
094265
|
-
|
|
|
|
26 - SWITCH CYLINDER, CPL.
MAF-006418.A2
006418
|
-
|
|
|
|
28 - MAINS CABLE WITH PLUG
MAF-031710.A1
031710
|
-
|
|
|
|
29 - SWITCH CASING
MAF-038244.A2
038244
|
-
|
|
|
|
30 - FLAT-HEAD SCREW
MAF-053006.A4
053006
|
-
|
|
|
|
32 - CHEESE-HEAD SCREW
MAF-005520.A1
005520
|
-
|
|
|
|
33 - COTTER PIN
MAF-005841.A1
005841
|
-
|
|
|
|
34 - SCREW-TYPE CABLE CLAMP
MAF-086077.A0
086077
|
-
|
|
|
|
35 - HEXAGONAL NUT
MAF-005912.A5
005912
|
-
|
|
|
|
36 - HEXAGONAL NUT
MAF-005915.A0
005915
|
-
|
|
|
|
38 - WASHER
MAF-006109.A0
006109
|
-
|
|
|
|
39 - FEDERSCHEIBE
MAF-006112.A0
006112
|
-
|
|
|
|
40 - LOCKING WASHER
MAF-006179.A4
006179
|
£1.53
|
£1.84
|
|
|
41 - LEG SPRING
MAF-006442.A2
006442
|
-
|
|
|
|
42 - WASHER
MAF-006443.A0
006443
|
-
|
|
|
|
44 - SWITCH COVER
MAF-008569.A1
008569
|
-
|
|
|
|
47 - CABLE COVER
MAF-008672.A1
008672
|
-
|
|
|
|
48 - SUPPORTING FRAME
MAF-022023.A
022023
|
-
|
|
|
|
49 - ROLLER TUB, ASSEMBLED
MAF-020012.A2
020012
|
-
|
|
|
|
50 - PART NAME NOT AVAILABLE
MAF-022016.A
022016
|
-
|
|
|
|
52 - GUIDE COLUMN
MAF-001515.A
001515
|
-
|
|
|
|
53 - BOLT
MAF-022020.A2
022020
|
-
|
|
|
|
54 - BOLT
MAF-022021.A2
022021
|
-
|
|
|
|
55 - CLIP
MAF-022022.A
022022
|
-
|
|
|
|
56 - SUPPORT
MAF-022019.A1
022019
|
-
|
|
|
|
57 - GUIDE FENCE EXTENSION
MAF-035861.A0
035861
|
-
|
|
|
|
58 - DEPTH STOP RING
MAF-035852.A0
035852
|
-
|
|
|
|
59 - WING SCREW
MAF-005700.A0
005700
|
-
|
|
|
|
60 - PRESSURE BOLT
MAF-005814.A0
005814
|
£3.12
|
£3.74
|
|
|
61 - SPRING DOWEL SLEEVE
MAF-005834.A0
005834
|
-
|
|
|
|
62 - COTTER PIN
MAF-005859.A1
005859
|
-
|
|
|
|
63 - HEXAGONAL NUT
MAF-005920.A1
005920
|
-
|
|
|
|
64 - HEXAGONAL NUT
MAF-005936.A1
005936
|
-
|
|
|
|
65 - SPRING BOLT
MAF-006511.A0
006511
|
-
|
|
|
|
66 - ARBOR
MAF-006512.A2
006512
|
-
|
|
|
|
67 - RETRACTING SPRING
MAF-006618.A1
006618
|
-
|
|
|
|
68 - STOP PLATE
MAF-020730.A0
020730
|
-
|
|
|
|
69 - STOP PLATE
MAF-003669.A2
003669
|
-
|
|
|
|
70 - CLAMPING BOLT
MAF-005720.A0
005720
|
-
|
|
|
|
71 - WING NUT
MAF-005918.A1
005918
|
-
|
|
|
|
72 - WASHER
MAF-006104.A3
006104
|
-
|
|
|
|
73 - PRESSURE SPRING
MAF-006624.A0
006624
|
-
|
|
|
|
74 - CLAMPING DISK
MAF-020001.A1
020001
|
-
|
|
|
|
75 - MOTOR CLAMPING SCREW
MAF-002918.A1
002918
|
-
|
|
|
|
76 - SWITCH ROD
MAF-004718.A0
004718
|
-
|
|
|
|
79 - FLAT-HEAD SCREW
MAF-005324.A0
005324
|
-
|
|
|
|
80 - CYLINDER-HEAD SCREW
MAF-005538.A6
005538
|
-
|
|
|
|
81 - SPRING DOWEL SLEEVE
MAF-005874.A11
005874
|
-
|
|
|
|
82 - HEXAGONAL NUT
MAF-005900.A4
005900
|
-
|
|
|
|
83 - HEXAGONAL NUT
MAF-005912.A1
005912
|
-
|
|
|
|
84 - HEXAGONAL NUT
MAF-005920.A14
005920
|
-
|
|
|
|
85 - HEXAGONAL NUT
MAF-005926.A9
005926
|
-
|
|
|
|
86 - CLAMPING RING
MAF-005937.A2
005937
|
-
|
|
|
|
87 - FEDERSCHEIBE
MAF-006112.A2
006112
|
-
|
|
|
|
88 - LOCKING WASHER
MAF-006114.A2
006114
|
-
|
|
|
|
89 - LUBRICATION DISK
MAF-006134.A1
006134
|
-
|
|
|
|
90 - SPLIT SPRING LOCK WASHER
MAF-006150.A0
006150
|
-
|
|
|
|
91 - GROOVED BALL BEARING
MAF-006202.A2
006202
|
-
|
|
|
|
92 - GROOVED BALL BEARING
MAF-006205.A1
006205
|
-
|
|
|
|
93 - CONNECTING BRIDGE
MAF-006436.A0
006436
|
-
|
|
|
|
94 - FELT RING
MAF-006502.A0
006502
|
-
|
|
|
|
95 - SHOULDER SCREW
MAF-008581.A1
008581
|
-
|
|
|
|
96 - CABLE LEAD-OUT
MAF-008625.A0
008625
|
-
|
|
|
|
97 - COVERING INSULATION
MAF-008645.A0
008645
|
-
|
|
|
|
98 - SINGLE-END SPANNER, BENT
MAF-093011.A1
093011
|
-
|
|
|
|
99 - SINGLE-END SPANNER
MAF-093032.A0
093032
|
-
|
|
|
|
100 - CLAMPING PLUG
MAF-093040.A1
093040
|
-
|
|
|
|
101 - MARKING TEMPLATE
MAF-093044.A0
093044
|
-
|
|
|
|
106 - SPACER RING
MAF-091361.A2
091361
|
-
|
|
|
|
106.1 - SPACER RING
MAF-091362.A2
091362
|
-
|
|
|
|
107 - SPACER RING
MAF-091363.A0
091363
|
-
|
|
|
|
107.1 - SPACER RING
MAF-091364.A1
091364
|
-
|
|
|
|
107.2 - SPACER RING
MAF-091365.A1
091365
|
-
|
|
|
|
602 - MORTISING CHAIN SET
MAF-091030.A2
091030
|
-
|
|
|
|
603 - CHAIN BAR, CPL.
MAF-091113.A2
091113
|
-
|
|
|
|
604 - MORTISING CHAIN
MAF-091214.A2
091214
|
-
|
|
|
|
605 - SPROCKET
MAF-091314.A0
091314
|
-
|
|
|
|
620 - BEARING
MAF-091103.A1
091103
|
-
|
|
|
|
621 - COVER + 3 FLAT-HEAD SCREWS
MAF-091197.A1
091197
|
-
|
|
|
|
622 - GREASE TUBE, CPL.
MAF-091207.A2
091207
|
-
|
|
|
|
623 - GREASE CUP
MAF-091101.A1
091101
|
-
|
|
|
|
624 - REPLACEMENT CHAIN LINKS + RIVETS
MAF-091277.A1
091277
|
-
|
|
|
