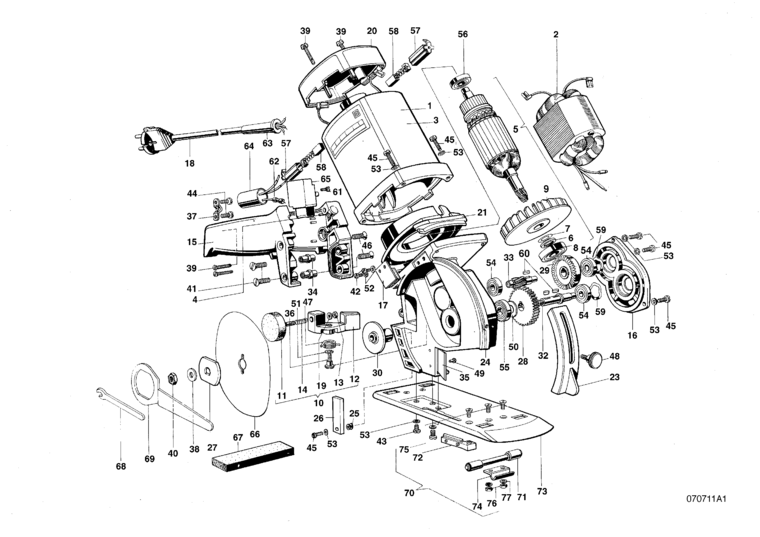

1 - PART NAME NOT AVAILABLE
MAF-084357.A
084357
|
-
|
|
|
|
2 - PART NAME NOT AVAILABLE
MAF-084360.A
084360
|
-
|
|
|
|
3 - MOTOR CASING
MAF-032735.A
032735
|
-
|
|
|
|
4 - RETAINING BOLT
MAF-031313.A
031313
|
-
|
|
|
|
5 - ARMATURE CPL.
MAF-088006.A
088006
|
-
|
|
|
|
6 - SPACER RING
MAF-030354.A
030354
|
-
|
|
|
|
7 - SHIM RING
MAF-006157.A5
006157
|
-
|
|
|
|
8 - GROOVED BALL BEARING
MAF-006280.A29
006280
|
£13.65
|
£16.38
|
|
|
9 - FAN
MAF-032675.A1
032675
|
-
|
|
|
|
10 - SHARPENING DEVICE, CPL.
MAF-030358.A
030358
|
-
|
|
|
|
11 - GRINDING WHEEL, CPL.
MAF-030359.A
030359
|
-
|
|
|
|
12 - LEVER
MAF-030361.A
030361
|
-
|
|
|
|
13 - HEXAGONAL NUT
MAF-005900.A15
005900
|
-
|
|
|
|
14 - PRESSURE SPRING
MAF-006684.A2
006684
|
-
|
|
|
|
15 - HANDLE SHELLS (PAIR)
MAF-038455.A
038455
|
-
|
|
|
|
16 - GEAR CASING COVER
MAF-030281.A
030281
|
-
|
|
|
|
17 - SPRING PLATE
MAF-030357.A
030357
|
-
|
|
|
|
18 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A25
087323
|
£39.41
|
£47.29
|
|
|
19 - WASHER
MAF-061015.A28
061015
|
-
|
|
|
|
20 - MOTOR COVER
MAF-029557.A
029557
|
-
|
|
|
|
21 - AIR CONDUCTING RING
MAF-029581.A
029581
|
-
|
|
|
|
23 - HOLDFAST
MAF-030363.A
030363
|
-
|
|
|
|
24 - GEAR CASING
MAF-031314.A
031314
|
-
|
|
|
|
25 - WASHER
MAF-061010.A2
061010
|
-
|
|
|
|
26 - BLADE GUARD
MAF-037379.A
037379
|
-
|
|
|
|
27 - WASHER
MAF-030298.A
030298
|
-
|
|
|
|
28 - ROUE DENTÉE
MAF-030284.A
030284
|
-
|
|
|
|
29 - BEVEL GEAR
MAF-030287.A
030287
|
-
|
|
|
|
30 - FLANGE, REAR
MAF-033728.A
033728
|
-
|
|
|
|
32 - BLADE SHAFT
MAF-033695.A
033695
|
-
|
|
|
|
33 - INTERMEDIATE ARBOR
MAF-030282.A
030282
|
-
|
|
|
|
34 - INSERTION NUT
MAF-029513.A3
029513
|
-
|
|
|
|
35 - SKIMMER
MAF-030353.A
030353
|
-
|
|
|
|
36 - SHOULDER SCREW
MAF-055007.A3
055007
|
-
|
|
|
|
37 - CABLE CLAMP
MAF-029584.A103
029584
|
-
|
|
|
|
38 - WASHER
MAF-061052.A3
061052
|
-
|
|
|
|
39 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A77
055061
|
£1.71
|
£2.05
|
|
|
40 - HEXAGONAL NUT
MAF-005973.A
005973
|
-
|
|
|
|
41 - FLAT-HEAD SCREW
MAF-055067.A0
055067
|
-
|
|
|
|
42 - CYLINDER-HEAD SCREW
MAF-055043.A4
055043
|
-
|
|
|
|
43 - CYLINDER-HEAD SCREW
MAF-005597.A4
005597
|
-
|
|
|
|
44 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055058.A30
055058
|
-
|
|
|
|
45 - CYLINDER-HEAD SCREW
MAF-055108.A13
055108
|
£1.28
|
£1.54
|
|
|
46 - FLAT-HEAD SCREW
MAF-005392.A
005392
|
-
|
|
|
|
47 - BENDING SPRING, TWISTED
MAF-006686.A
006686
|
-
|
|
|
|
48 - KNURLED-HEAD SCREW
MAF-005751.A
005751
|
-
|
|
|
|
49 - RIBBED NAIL
MAF-005826.A6
005826
|
-
|
|
|
|
50 - SHIM RING
MAF-006136.A3
006136
|
-
|
|
|
|
51 - FEDERSCHEIBE
MAF-006112.A6
006112
|
-
|
|
|
|
52 - LOCKING WASHER
MAF-007113.A1
007113
|
-
|
|
|
|
53 - LOCKING WASHER
MAF-006184.A43
006184
|
£1.50
|
£1.80
|
|
|
54 - GROOVED BALL BEARING
MAF-006296.A13
006296
|
-
|
|
|
|
55 - GROOVED BALL BEARING
MAF-006282.A25
006282
|
£14.68
|
£17.62
|
|
|
56 - GROOVED BALL BEARING
MAF-006292.A9
006292
|
£12.47
|
£14.96
|
|
|
57 - BRUSH HOLDER
MAF-006365.A
006365
|
-
|
|
|
|
58 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-006368.A
006368
|
-
|
|
|
|
59 - COMPENSATING DISK
MAF-006687.A2
006687
|
-
|
|
|
|
60 - ADJUSTING SPRING
MAF-006688.A
006688
|
-
|
|
|
|
61 - OVAL-HEAD SCREW
MAF-055143.A8
055143
|
-
|
|
|
|
62 - CONTACT CLIP
MAF-008747.A17
008747
|
-
|
|
|
|
63 - CABLE PROTECTING SLEEVE
MAF-086064.A82
086064
|
£3.37
|
£4.04
|
|
|
64 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-087383.A5
087383
|
£16.12
|
£19.34
|
|
|
65 - 2-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087541.A3
087541
|
-
|
|
|
|
66 - FOUR-ARC CUTTING BLADE
MAF-092173.A
092173
|
-
|
|
|
|
67 - WHETSTONE
MAF-093385.A
093385
|
-
|
|
|
|
68 - SPANNER
MAF-063258.A
063258
|
£4.48
|
£5.37
|
|
|
69 - RING SPANNER
MAF-093089.A
093089
|
-
|
|
|
|
70 - BASE PLATE, CPL.
MAF-031556.A
031556
|
-
|
|
|
|
71 - ARBOR, ASS.
MAF-030294.A
030294
|
-
|
|
|
|
72 - SUPPORT WITH COUNTER BLADE
MAF-031001.A
031001
|
-
|
|
|
|
73 - BASE PLATE
MAF-030293.A
030293
|
-
|
|
|
|
74 - ARBOR SUPPORT
MAF-030350.A
030350
|
-
|
|
|
|
75 - FLAT-HEAD SCREW
MAF-005331.A0
005331
|
-
|
|
|
|
76 - HEXAGONAL NUT
MAF-005954.A
005954
|
-
|
|
|
|
77 - LOCKING WASHER
MAF-006184.A35
006184
|
£1.50
|
£1.80
|
|
