Elu RKS1251 Type 1 Radial Arm Saw Spare Parts

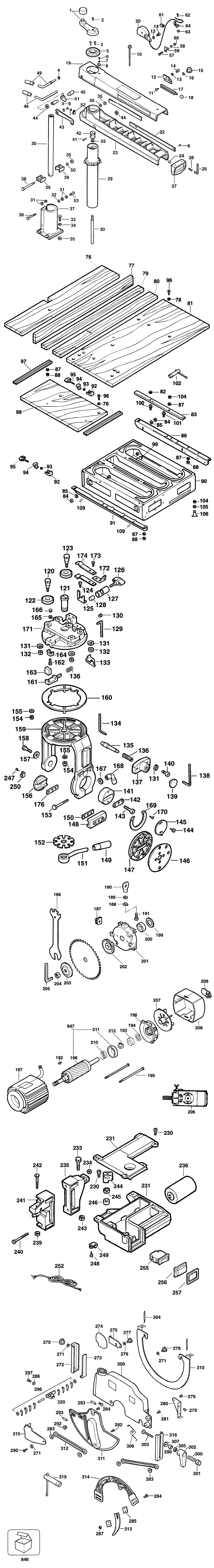

An exploded drawing and spare parts listing for the Elu RKS1251 Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A16798 000000-00	-
2 - SCREW BDE-934401-00.A41 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A93 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A27 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A45 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A40 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A95 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A38 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-06.A21 860085-06	£1.42	£1.70
10 - SPRING BDE-863723-00.A11 863723-00	-
11 - SCREW BDE-860301-00.A90 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A44 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A301 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-07.A5 860093-07	£1.50	£1.80
15 - KNOB BDE-946469-01.A81 946469-01	-
16 - WASHER BDE-720959-00.A140 720959-00	£1.50	£1.80
17 - ARM BDE-860852-90.A22 860852-90	-
18 - STOP RUBBER BDE-860786-00.A15 860786-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A16799 000000-00	-
20 - FSO REPAIR KIT BDE-N152003.A5 N152003	£84.42	£101.30
22 - SCALE GB BDE-863273-00.A4 863273-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A16800 000000-00	-
24 - BUMPER BDE-860429-00.A26 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A23 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A7 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A16801 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A16802 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A10 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A203 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A306 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A50 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A54 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A106 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A10 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A16803 000000-00	-
38 - SCREW BDE-860086-00.A59 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A34 860065-00	£1.82	£2.19
41 - PIN BDE-860096-06.A24 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A43 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A1 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A27 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A33 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A23 864723-01	£34.00	£40.80
49 - LEVER BDE-860795-00.A11 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A49 860074-04	£1.50	£1.80
51 - LATCH BDE-864672-01.A22 864672-01	-
52 - BRACKET BDE-860843-02.A55 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A10 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A27 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A36 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A91 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A139 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A8 860858-00	-
60 - NUT BDE-860083-03.A266 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A17 860521-00	-
62 - SCREW BDE-860090-02.A37 860090-02	-
63 - NUT BDE-860083-01.A50 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A16804 000000-00	-
76 - TABLE BDE-864944-00.A9 864944-00	£33.13	£39.76
77 - GUIDE BDE-864914-00.A5 864914-00	£18.42	£22.10
78 - WASHER M8 BDE-860073-03.A307 860073-03	£1.50	£1.80
79 - NO LONGER AVAILABLE GB BDE-000000-00.A16805 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A16806 000000-00	-
81 - TABLE BDE-864943-00.A5 864943-00	£57.22	£68.66
82 - QUICKLOCK BDE-860077-02.A12 860077-02	£1.42	£1.70
83 - BAR BDE-860007-00.A4 860007-00	-
84 - NUT RH BDE-860083-05.A107 860083-05	£1.50	£1.80
85 - WASHER BDE-860074-04.A48 860074-04	£1.50	£1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A16809 000000-00	-
87 - WASHER BDE-860074-03.A303 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A201 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A16807 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A16808 000000-00	-
92 - SLIDER BDE-860069-00.A21 860069-00	-
93 - NUT BDE-860083-03.A267 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A16810 000000-00	-
95 - KNOB BDE-863310-00.A64 863310-00	-
96 - SCREW BDE-949703-01.A15 949703-01	£1.50	£1.80
97 - SUPPORT BRACKET BDE-863130-04.A16 863130-04	£10.85	£13.02
98 - NO LONGER AVAILABLE BDE-000000-00.A16811 000000-00	-
99 - BOLT BDE-860085-00.A6 860085-00	£1.42	£1.70
100 - STUD BDE-760565-01.A5 760565-01	-
101 - NO LONGER AVAILABLE BDE-000000-00.A16812 000000-00	-
102 - SPANNER BOX BDE-869235-00.A63 869235-00	£17.48	£20.97
104 - NUT BDE-860083-04.A202 860083-04	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A304 860073-03	£1.50	£1.80
106 - FOOT BDE-941614-00.A45 941614-00	£1.50	£1.80
120 - SHAFT BDE-760421-00.A16 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A24 860123-00	-
122 - BEARING BDE-860154-00.A27 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A47 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A81 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A16813 000000-00	-
126 - KNOB BDE-862427-00.A20 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A32 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A16814 000000-00	-
129 - KEY BDE-938539-00.A63 938539-00	£1.50	£1.80
130 - SCREW BDE-860088-27.A40 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A302 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A46 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A14 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A54 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A20 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A38 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A21 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A71 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A80 946469-01	-
140 - SCREW BDE-860093-00.A11 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A34 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A26 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A30 860093-18	-
144 - SCREW BDE-860531-00.A41 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A41 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A14 860830-00	-
147 - SHIELD BDE-860827-00.A44 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A8 860828-00	-
149 - KNOB BDE-860796-01.A49 860796-01	-
150 - PLATE BDE-860809-00.A9 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A16815 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A16816 000000-00	-
153 - SCREW BDE-860086-11.A46 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A167 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A138 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A22 860822-00	-
157 - WASHER BDE-941602-00.A172 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A10 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A10 860823-02	-
160 - RING SA BDE-860824-00.A43 860824-00	£55.30	£66.36
161 - CATCH BDE-860818-04.A19 860818-04	-
162 - SCREW BDE-860085-06.A20 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A16817 000000-00	-
164 - CATCH BDE-860816-00.A43 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A159 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A19 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A304 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A14 860825-00	-
169 - POINTER BDE-860829-00.A52 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A37 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A16818 000000-00	-
172 - BRACKET BDE-863726-00.A10 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-03.A166 860094-03	£1.50	£1.80
174 - SPRING BDE-860820-00.A4 860820-00	£1.82	£2.19
176 - PLATE BDE-863010-00.A0 863010-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A16819 000000-00	-
187 - BUSHING BDE-860447-00.A32 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A9 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A308 860073-03	£1.50	£1.80
190 - NUT BDE-860655-01.A10 860655-01	-
191 - SCREW BDE-860085-19.A94 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A31 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A80 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A78 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A35 860446-00	£1.50	£1.80
196 - HOUSING SA BDE-861345-00.A4 861345-00	£17.48	£20.97
197 - STATOR BDE-868413-00.A17 868413-00	£293.97	£352.76
198 - NO LONGER AVAILABLE BDE-000000-00.A16820 000000-00	-
199 - RING BDE-860806-00.A14 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A67 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A23 860808-00	-
202 - INNER FLANGE BDE-863266-00.A6 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A31 861241-00	-
204 - NUT BDE-860126-01.A15 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A70 860098-05	£3.30	£3.96
206 - MOTOR 1 PH BDE-868407-00.A2 868407-00	-
207 - FAN BDE-860444-00.A45 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A34 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A33 863112-00	£1.50	£1.80
210 - SPRING BDE-861338-00.A0 861338-00	£1.50	£1.80
211 - BRAKE AFTER WEEK 41-97 BDE-861336-02.A0 861336-02	£9.41	£11.29
212 - CIRCLIP BDE-861349-00.A5 861349-00	£1.50	£1.80
230 - SCREW BDE-930076-00.A83 930076-00	£1.50	£1.80
231 - HANDLE SA BDE-868649-00.A13 868649-00	£19.90	£23.88
233 - SCREW BDE-860093-00.A12 860093-00	£1.50	£1.80
235 - HANDLE RH BDE-863318-00.A0 863318-00	£3.80	£4.56
236 - CAPACITOR GB BDE-949772-28.A12 949772-28	-
239 - NUT BDE-860083-03.A269 860083-03	£1.50	£1.80
240 - SCREW GB BDE-949886-10.A12 949886-10	£1.78	£2.13
241 - HANDLE LH BDE-863319-00.A20 863319-00	-
242 - SCREW BDE-860093-20.A19 860093-20	£1.50	£1.80
243 - NUT BDE-860083-04.A199 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A16821 000000-00	-
245 - BLOCK BDE-863111-00.A12 863111-00	-
247 - SCREW BDE-860094-03.A165 860094-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A113 860084-20	£1.50	£1.80
249 - BRACKET BDE-860843-02.A56 860843-02	£1.50	£1.80
250 - BRACKET BDE-860843-02.A57 860843-02	£1.50	£1.80
252 - CORDSET (M/PLUG) GB GB BDE-868551-01.A15 868551-01	£24.39	£29.27
255 - SWITCH SA BDE-861385-04.A9 861385-04	£80.98	£97.18
256 - PLATE BDE-863198-00.A10 863198-00	-
257 - CAP BDE-863849-00.A14 863849-00	-
270 - KNOB BDE-946469-01.A79 946469-01	-
271 - WASHER BDE-860075-00.A135 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A29 863709-00	-
273 - PROTECTOR BDE-863703-00.A33 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A60 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A38 863708-00	£10.85	£13.02
276 - WASHER BDE-860073-01.A157 860073-01	£1.50	£1.80
277 - KNOB BDE-861842-01.A40 861842-01	£1.50	£1.80
279 - SCREW BDE-760273-00.A34 760273-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A32 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A107 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A70 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A69 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A89 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A11 864086-00	£3.70	£4.44
286 - WASHER BDE-860074-02.A74 860074-02	£1.50	£1.80
287 - NUT BDE-860083-03.A268 860083-03	£1.50	£1.80
290 - SCREW BDE-941518-00.A55 941518-00	£1.50	£1.80
292 - BUSH BDE-863705-00.A35 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A5 864054-00	£1.82	£2.19
296 - KICK BACK SA BDE-864814-01.A17 864814-01	-
297 - SCREW BDE-760219-00.A28 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A13 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A32 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A31 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A0 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A8 949891-03	£1.50	£1.80
304 - SPRING BDE-861221-00.A7 861221-00	£2.78	£3.34
305 - NUT BDE-860083-15.A111 860083-15	£1.50	£1.80
306 - SPRING BDE-861239-00.A25 861239-00	£5.88	£7.06
307 - WASHER M8 BDE-860073-03.A309 860073-03	£1.50	£1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A16822 000000-00	-
310 - PROTECTOR BDE-863706-01.A13 863706-01	£10.85	£13.02
311 - GUARD BDE-862417-00.A17 862417-00	£10.85	£13.02
312 - LEVER BDE-862084-01.A16 862084-01	-
313 - RIVING KNIFE BDE-863269-00.A5 863269-00	-
314 - BRACKET BDE-862083-00.A13 862083-00	-
315 - BRACKET BDE-863775-01.A16 863775-01	-
316 - PROTECTOR BDE-863434-00.A14 863434-00	-
319 - SPANNER BOX BDE-760601-00.A5 760601-00	£2.26	£2.71
320 - BRACKET BDE-945632-90.A9 945632-90	-
846 - GUARD SA BDE-869322-00.A8 869322-00	-
847 - ROTOR SA BDE-868424-01.A7 868424-01	-

Attribute Name	Value
Brand	Elu

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Elu RKS1251 Type 1 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Elu RKS1251 Type 1 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
