Mafell 916702 Cross-Cutting System KSS 300 MaxiMAX in MAFELL-MAX up to machine no. 1158650 Spare Parts

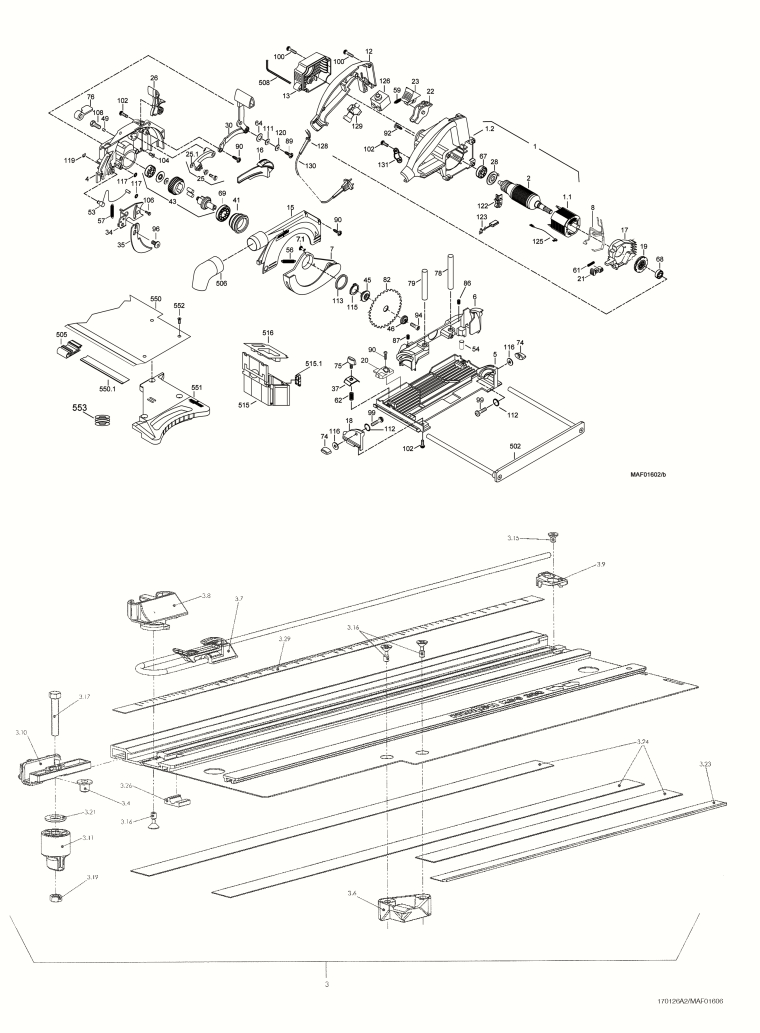

An exploded drawing and spare parts listing for the Mafell 916702 Cross-Cutting System KSS 300 MaxiMAX in MAFELL-MAX up to maschine no. 1158650

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR MAF-084548.A2 084548	£147.78	£177.34
1.1 - INDUCTOR WITH COIL MAF-084547.A2 084547	£88.61	£106.33
1.2 - MOTOR CASING, EMPTY MAF-203196.A1 203196	£42.95	£51.54
2 - ARMATURE, BALANCED MAF-088169.A0 088169	£97.31	£116.77
3 - GUIDE TRACK AS OPTIONAL ACCESSORY MAF-206790.A3 206790	£217.80	£261.36
3.4 - SLEEVE MAF-204237.A4 204237	-
3.6 - STOP PLATE MAF-204019.A0 204019	-
3.7 - POLYETHYLENE CABLE MAF-204234.A1 204234	£16.82	£20.19
3.8 - COVER MAF-204227.A1 204227	-
3.9 - END CAP MAF-204022.A0 204022	-
3.10 - INDICATOR MAF-203987.A10 203987	£9.24	£11.09
3.11 - STOP PLATE MAF-203988.A9 203988	£4.72	£5.67
3.15 - FLAT-HEAD SCREW MAF-053033.A1 053033	-
3.16 - FLAT-HEAD SCREW MAF-053029.A17 053029	£2.84	£3.41
3.17 - HEXAGON-HEAD SCREW MAF-005688.A4 005688	-
3.19 - HEXAGONAL NUT MAF-005915.A24 005915	-
3.21 - WASHER MAF-006102.A44 006102	-
3.23 - SPLINTER GUARD MAF-204371.A2 204371	£13.74	£16.49
3.24 - ADHESIVE COATING MAF-204370.A4 204370	£41.25	£49.50
3.26 - BUFFER MAF-204226.A4 204226	-
3.29 - SKALE MAF-204225.A0 204225	-
4 - GEAR CASING MAF-203185.A1 203185	£109.41	£131.29
5 - BASE PLATE MAF-204018.A0 204018	£95.58	£114.70
6 - TILTING SUPPORT MAF-203172.A3 203172	-
7 - PROTECTIVE COVER MAF-208051.A1 208051	£42.67	£51.20
7.1 - RIBBED NAIL MAF-058068.A10 058068	-
8 - CONTROL MODULE MAF-077174.A2 077174	-
12 - HANDLE SHELL MAF-203190.A2 203190	-
13 - MOTOR COVER MAF-203189.A2 203189	-
15 - PROTECTIVE COVER MAF-204231.A1 204231	-
16 - COVER MAF-203179.A3 203179	-
17 - AIR CONDUCTING RING MAF-203184.A1 203184	-
18 - BEARING BLOCK MAF-203183.A2 203183	£11.64	£13.97
19 - FAN MAF-203182.A6 203182	£10.48	£12.57
20 - ADAPTER MAF-204224.A4 204224	£6.22	£7.47
21 - LOCKING BOLT MAF-203181.A1 203181	-
22 - SWITCH TRIGGER MAF-203188.A1 203188	£4.29	£5.15
23 - LOCK-OFF BUTTON MAF-203187.A3 203187	£8.41	£10.09
25 - LEVER MAF-204546.A2 204546	-
25.1 - LOCKING WASHER MAF-061069.A30 061069	£1.49	£1.79
26 - LEVER MAF-203177.A1 203177	-
28 - CENTRIFUGAL DISK MAF-203169.A0 203169	£6.25	£7.50
30 - LEVER JOINT MAF-203193.A4 203193	£16.05	£19.26
34 - RIVING KNIFE/SPLITTER SUPPORT MAF-203164.A0 203164	-
35 - RIVING KNIFE/SPLITTER MAF-203165.A0 203165	£13.53	£16.24
37 - CLAMPING CLAWS MAF-200050.A14 200050	£4.32	£5.18
41 - BEARING COVER MAF-203168.A4 203168	-
43 - GEAR SHAFT, CPL. MAF-203813.A0 203813	£86.86	£104.23
45 - FLANGE, REAR MAF-203167.A4 203167	£12.12	£14.55
46 - FLANGE, FRONT MAF-203166.A3 203166	£11.25	£13.50
49 - CLAMPING BOLT MAF-203783.A4 203783	£3.51	£4.21
53 - BOWDEN CABLE, CPL. MAF-203194.A0 203194	£8.28	£9.94
54 - STOP BUFFER MAF-203207.A2 203207	-
56 - RETRACTING SPRING MAF-066150.A3 066150	£3.78	£4.53
57 - RETRACTING SPRING MAF-066151.A4 066151	-
59 - RETRACTING SPRING MAF-006634.A11 006634	£3.46	£4.15
61 - PRESSURE SPRING MAF-006657.A2 006657	-
62 - PRESSURE SPRING MAF-066043.A110 066043	£3.04	£3.65
64 - CUP SPRING MAF-006660.A23 006660	-
67 - GROOVED BALL BEARING MAF-062010.A18 062010	£10.75	£12.90
68 - GROOVED BALL BEARING MAF-006294.A6 006294	£15.13	£18.16
69 - GROOVED BALL BEARING MAF-062082.A15 062082	£17.88	£21.45
74 - WING NUT MAF-076959.A15 076959	£4.65	£5.58
75 - WING SCREW MAF-071011.A0 071011	-
76 - TENSIONING LEVER MAF-039413.A15 039413	-
78 - CYLINDRICAL PIN MAF-058206.A2 058206	-
79 - CYLINDRICAL PIN MAF-058207.A2 058207	-
82 - TCT SAW BLADE MAF-092559.A2 092559	£56.82	£68.19
86 - THREADED PIN MAF-005279.A4 005279	-
87 - THREADED PIN MAF-005284.A58 005284	-
89 - OVAL-HEAD SCREW MAF-055068.A17 055068	-
90 - SELF-TAPPING SCREW MAF-055232.A8 055232	£1.68	£2.02
92 - SELF-TAPPING SCREW MAF-055230.A51 055230	-
94 - CYLINDER-HEAD SCREW MAF-055202.A1 055202	£2.55	£3.06
96 - OVAL-HEAD SCREW MAF-053019.A2 053019	-
99 - TRUSS-HEAD SCREW MAF-057002.A4 057002	£1.65	£1.98
100 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A85 055061	£1.71	£2.05
102 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A59 055233	£1.71	£2.05
104 - FLAT-HEAD SCREW MAF-053024.A3 053024	-
106 - SHOULDER SCREW MAF-055250.A4 055250	-
108 - HEXAGON-HEAD SCREW MAF-056025.A0 056025	-
111 - WASHER MAF-061013.A59 061013	-
112 - SHIM RING MAF-061177.A1 061177	-
113 - WASHER MAF-006132.A1 006132	-
115 - RETAINING RING MAF-071007.A4 071007	-
116 - WASHER MAF-006100.A39 006100	£2.01	£2.41
117 - LOCKING WASHER MAF-061069.A39 061069	£1.49	£1.79
119 - LOCKING WASHER MAF-061106.A9 061106	£2.28	£2.74
120 - LOCKING WASHER MAF-006184.A37 006184	£1.50	£1.80
122 - BRUSH HOLDER MAF-063160.A22 063160	£10.07	£12.08
123 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A10 063164	£11.43	£13.72
126 - 2-POLE SWITCH MAF-087851.A17 087851	£18.18	£21.82
128 - CABLE PROTECTING SLEEVE MAF-086064.A57 086064	£3.37	£4.04
129 - INTERFERENCE SUPPRESSION CAPACITOR MAF-087879.A0 087879	£12.44	£14.93
130 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A23 087323	£39.41	£47.29
131 - CABLE CLAMP MAF-029584.A49 029584	-
502 - PARALLEL GUIDE FENCE MAF-203180.A0 203180	£52.80	£63.36
505 - CLAMPING CLAWS MAF-203773.A3 203773	£10.21	£12.25
506 - HOSE CONNECTOR MAF-203782.A0 203782	£17.52	£21.02
508 - ALLEN KEY MAF-093074.A23 093074	£2.95	£3.54
515 - CARRYING CASE MAFELL-MAX MAF-095043.A18 095043	-
515.1 - LATCH MAF-095074.A35 095074	-
516 - PLASTIC TRAY MAF-204228.A2 204228	-
550 - FLEXI-GUIDE RAIL FX 140 MAF-203796.A2 203796	-
550.1 - SPLINTER GUARD MAF-203633.A3 203633	£12.82	£15.39
551 - HANDLE MAF-203771.A2 203771	£23.02	£27.63
552 - FLAT-HEAD SELF-TAPPING SCREW MAF-005397.A1 005397	£1.55	£1.86
553 - SEALING RING MAF-065050.A2 065050	-
